Concrete Floor Thickness: Essential for Car Hoist Setup

Critical Considerations for Installing a Car Hoist in Your Garage

If you are seriously considering the installation of a car hoist in your garage, it is absolutely essential to ensure that your concrete floor complies with the requisite specifications. A robust and stable foundation is not merely important for the effective performance of the hoist; it is also crucial for safeguarding both your vehicles and the individuals operating the machinery. Comprehensive preparation and strict adherence to established guidelines can significantly improve both functionality and durability, providing peace of mind while utilising this equipment.

Most car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This specific measurement is vital as it facilitates the uniform distribution of weight from both the vehicle and the hoist, thereby mitigating the risk of any potential cracking or sinking over time. For those considering more heavy-duty hoists, it is prudent to contemplate a thicker concrete slab, potentially extending up to 150mm (6 inches), to ensure optimal performance and safety standards are met.

Detailed Steps to Accurately Assess Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a pivotal factor in the safe installation and operation of a car hoist. Several important elements must be evaluated when determining the appropriate depth of your slab, ensuring it can adequately support the loads it will encounter during use. A thorough understanding of these factors not only prevents costly miscalculations but also enhances the overall safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert substantial stress on the concrete floor beneath them. Therefore, comprehending the total weight that your concrete floor must support is essential. This consideration encompasses not only the weight of the vehicle but also the substantial weight of the hoist itself, which can significantly add to the overall load on the floor.

A typical passenger car usually weighs between 1,500 to 2,000 kg, while the hoist itself may contribute an additional 500 to 1,000 kg. Furthermore, it is advisable to incorporate a safety buffer by factoring in extra weight to ensure that the structure can withstand unforeseen circumstances. This precaution is vital for maintaining safety and functionality during operations.

For the majority of home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, should you plan on lifting substantially heavier vehicles, it is wise to contemplate a thicker slab to guarantee safety and stability during operations. Engaging with a qualified structural engineer is a prudent step, as they can provide expert guidance and assist you in calculating the precise thickness needed based on your specific circumstances and requirements.

Examining Varied Types of Car Hoists and Their Concrete Thickness Specifications

It is crucial to recognise that different types of car hoists have unique requirements concerning concrete thickness. Two-post lifts and four-post lifts are two of the most popular options among homeowners looking to install a car hoist in their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This understanding is critical when planning your installation.

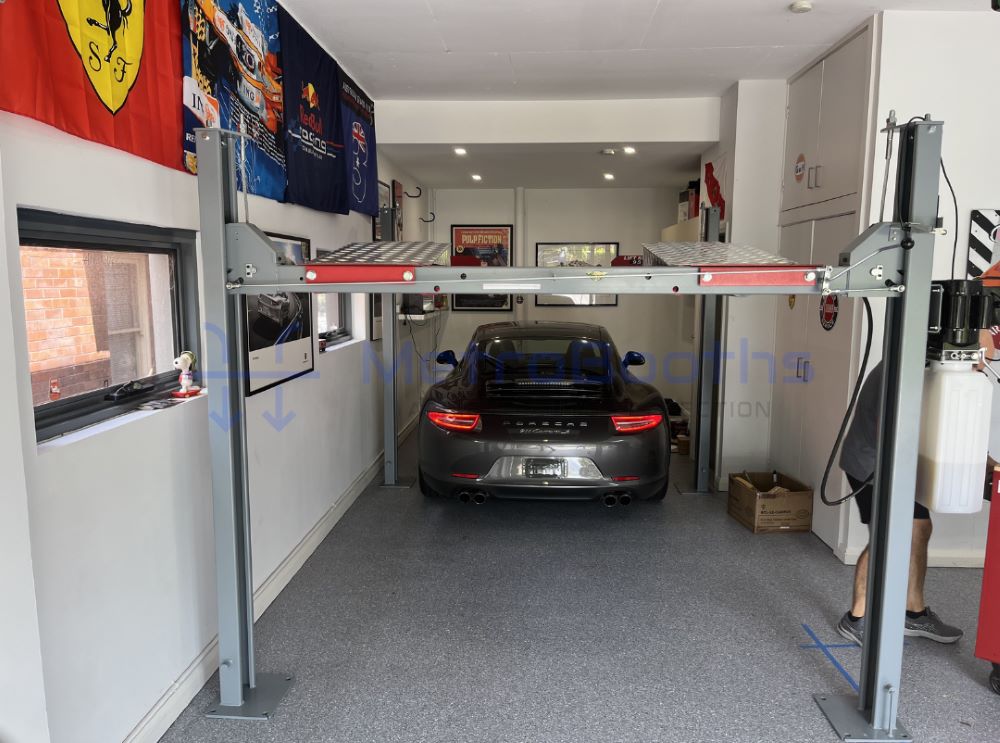

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to operate effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge is essential for your planning and installation process, ensuring that you select the right type of hoist for your needs.

Always consult the manufacturer’s specifications for the hoist you are considering, as these will typically outline the minimum concrete thickness required for safe operation. Strict adherence to these guidelines is crucial for achieving optimal performance and longevity.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary based on the configuration of your garage and the types of vehicles you intend to lift, so tailor your approach accordingly.

Grasping the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is equally as important as its thickness. Stronger concrete can often be utilised effectively at a thinner depth while still providing adequate support for heavy loads. This aspect is particularly relevant in the context of installing a car hoist.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting, as this ensures greater resilience under stress.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can considerably improve the overall strength of your concrete floor. Consequently, this could enable you to utilise a thinner slab while ensuring that it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an ideal choice for budget-conscious homeowners.

If you have concerns regarding potential cracking in your concrete, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Vital Installation Factors for Ensuring Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of paramount importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring reliable performance over time.

Indispensable Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Prior to the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use, safeguarding both operators and vehicles alike.

For new concrete pours, it is vital to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, preventing any potential issues during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide guidance on any necessary improvements.

Essential Maintenance Practices Following Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Vigilantly watch for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could adversely affect the functionality of your hoist and the safety of its operation.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, ultimately extending its lifespan and maintaining a safe working environment.

Regularly check the tightness of the anchor bolts; loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage for years to come.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly enhance the durability of your concrete floor while also improving its appearance, making it a worthwhile investment for any garage owner.

Common Questions Regarding Car Hoist Installation and Concrete Specifications

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to guarantee both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing clarity and guidance for prospective installers.

What is the minimum concrete thickness necessary for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. It is always prudent to consult the manufacturer’s specifications, as certain models may require thicker slabs for safe and effective operation.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards that could jeopardise not only the equipment but also the safety of users. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, particularly in high-traffic environments.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will hinge on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that safety is never compromised.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency in your garage.
