Three-Phase Switchboard: Is It Crucial for Air Conditioning?

High-power ducted air conditioning systems have the potential to vastly enhance comfort levels within a Brisbane home. However, they often require significantly more electrical capacity than what a typical single-phase supply can support. This highlights the vital role of a three-phase power upgrade. Transitioning to a three-phase system allows homeowners to ensure their air conditioning operates at maximum efficiency without overloading their current electrical infrastructure, thereby safeguarding against potential issues related to power supply.

This comprehensive guide delves into the critical scenarios that warrant a three-phase upgrade, emphasising its significance for air conditioning performance. It also explores the relationship between three-phase systems and solar power installations, which is particularly relevant in Brisbane, where nearly half of all residences are equipped with solar panels. Understanding these factors can empower homeowners to make informed decisions about their electrical needs and enhance their overall energy management strategies.

Understanding the Need for Three-Phase Power in High-Power Air Conditioning Systems

While many split system air conditioners and smaller ducted units can operate effectively on a single-phase supply, larger ducted systems with cooling capacities exceeding 12–15kW require a substantial increase in power consumption. As energy demands rise, the limitations inherent in a single-phase supply become increasingly apparent, often resulting in service interruptions and operational inefficiencies that can compromise comfort and functionality.

Three-phase power is specifically designed to distribute the electrical load evenly across three live wires, rather than relying on a single phase alone. This advanced setup provides numerous advantages, such as:

• Higher capacity systems can operate smoothly without tripping circuit breakers, thereby reducing the likelihood of system failures.
• More stable voltage contributes to the efficiency and longevity of the air conditioning unit, ensuring consistent and reliable performance throughout its operational life.
• Reduced strain on your overall electrical system, especially when other high-demand appliances are in use simultaneously.

If you are in the process of constructing a large new home or considering an upgrade to a more powerful air conditioning model, opting for a three-phase supply may be the most prudent and compliant approach to meet your electrical demands in line with Australian Standards.

Identifying Key Indicators for a Three-Phase Upgrade in Air Conditioning Systems

• You are planning to install a ducted system that exceeds 12–15kW in cooling capacity.
• Your electrician has indicated that your existing single-phase supply cannot support the required electrical load.
• The specifications provided by the manufacturer clearly state that three-phase power is essential for optimal operation.
• You regularly operate other high-demand appliances, such as large pool pumps, welders, or commercial kitchen equipment, concurrently with your air conditioning unit.

An electrical assessment conducted by a qualified electrician can determine whether your current electrical supply meets the demands of your system, or if a three-phase upgrade would significantly enhance reliability and performance over the long term.

The Synergy Between Solar Power and Three-Phase Systems

With over half of Brisbane households now harnessing rooftop solar energy, many residents are keen to explore how they can expand their systems or integrate them with high-power appliances, including ducted air conditioning. The relationship between solar power systems and three-phase upgrades can substantially improve energy efficiency and enhance the overall performance of both systems.

Generally, residences on a single-phase supply in Australia are limited to approximately 5–6.6kW of solar inverter capacity due to regulations imposed by most electricity distributors. Should you wish to install a larger solar system—particularly those exceeding 10kW—transitioning to a three-phase connection may be essential to comply with network requirements and prevent potential export limitations.

Embracing three-phase power also facilitates:

• Balancing solar generation across phases, which promotes smoother grid export and enhances the reliability of your energy system.
• Preventing voltage rise issues that could lead to solar inverters tripping, thereby ensuring uninterrupted operation.
• Enabling high-power appliances to function directly from solar energy without overloading any single phase, thus maximising overall efficiency.

If you’re contemplating the installation of both a large ducted air conditioning system and an expanded solar array, upgrading to three-phase power can dramatically enhance operational efficiency, ensure compliance with regulatory standards, and optimise your ability to harness and utilise solar energy effectively.

Essential Steps to Transition to Three-Phase Power for Your Home

The process of upgrading to three-phase power is typically straightforward when handled by a licensed electrician. The upgrade usually involves several key steps:

1. Assessment – Reviewing your home’s load requirements, the specifications of your air conditioning system, and your solar energy plans to ensure compatibility and efficiency.
2. Distributor application – Submitting an application for approval from your local energy network provider, ensuring compliance with all relevant regulations.

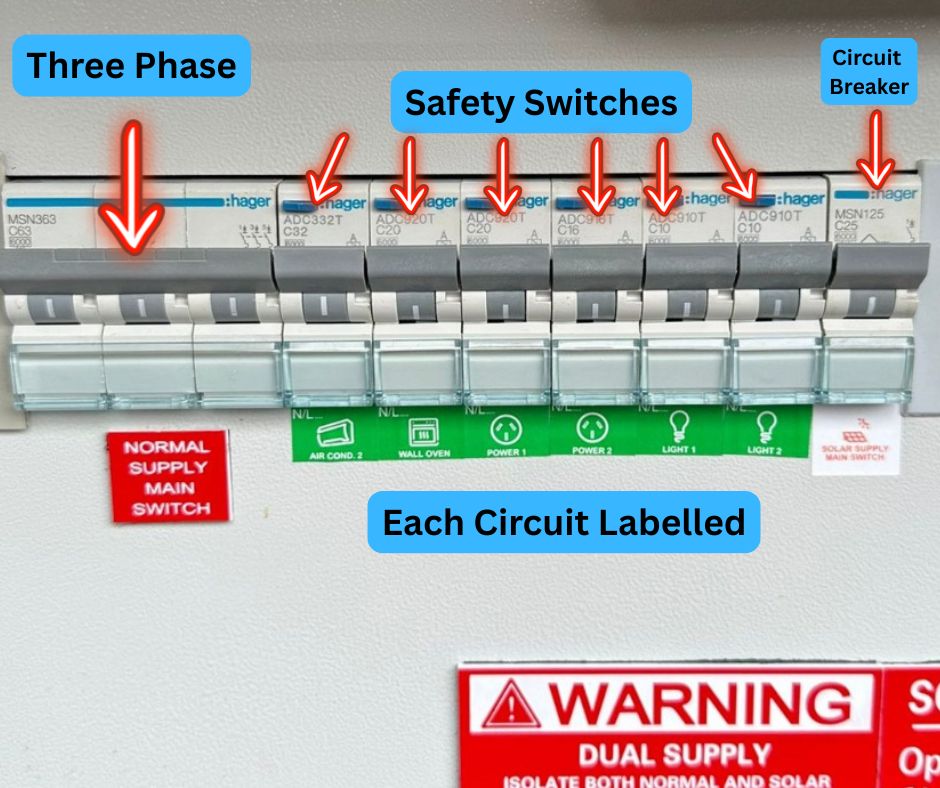

3. Switchboard upgrade – Installing a compliant three-phase switchboard along with the necessary circuit protection measures to guarantee safety and efficiency.
4. Final connection – Coordinating with your energy provider to seamlessly connect the new three-phase supply.

At Precision Electrical & Air, we are dedicated to managing the entire upgrade process from start to finish, ensuring that your air conditioning and solar systems are equipped to meet the demands of modern living and energy requirements efficiently.

Exploring the Benefits of Upgrading to Three-Phase Power

Investing in a high-power ducted air conditioning system, particularly when combined with an extensive solar installation, means that selecting three-phase power is not merely an upgrade; it embodies a commitment to reliability and superior performance. This enhancement guarantees stable operation, significantly diminishes the risk of electrical complications, and provides the capacity to run your comfort systems without any compromises or interruptions.

We specialise in the installation, upgrading, and maintenance of three-phase switchboards throughout Brisbane, ensuring seamless integration with solar and battery systems. Whether you are building, renovating, or retrofitting your home, our expert team will design an electrical solution that keeps your living space comfortable, energy-efficient, and well-prepared for the future.
